Customed Cleaned Potato Second Crushing Rasper ประสิทธิภาพการบดที่ยอดเยี่ยม
รายละเอียดสินค้า:
| Place of Origin: | Zhengzhou City,China |
| ชื่อแบรนด์: | JINGHUA |
| ได้รับการรับรอง: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชุด |
|---|---|
| ราคา: | สามารถต่อรองได้ |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| สามารถในการผลิต: | 20 ชุด/เดือน |
|
ข้อมูลรายละเอียด |
|||
| Application: | Potato grinder making machine | พลังงาน: | ติดตั้งระบบไฟฟ้า |
|---|---|---|---|
| ความจุ: | ที่กำหนดเอง | การติดตั้ง: | ใช่ |
| Maintain: | Yes | เงื่อนไข: | ใหม่ |
| วัสดุ: | สแตนเลส | Voltage: | 220V or 380V |
| เน้น: | เครื่องจักรแปรรูปแป้งมันฝรั่ง,เครื่องแป้งมันฝรั่ง |
||
รายละเอียดสินค้า

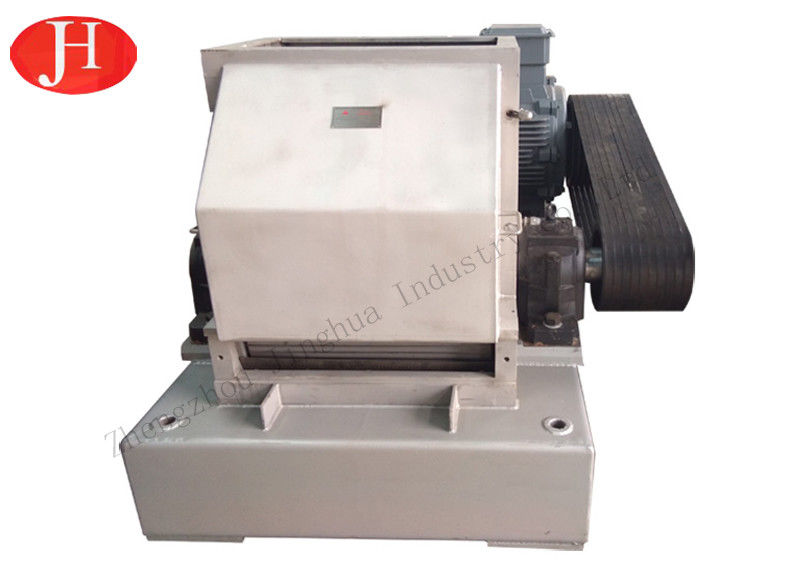

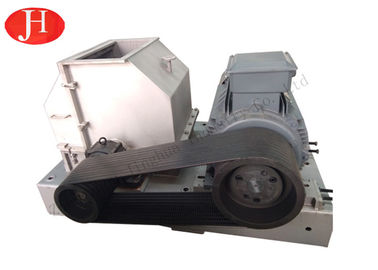

Customized Cleaned Potato Second Crushing Rasper Potato Starch Making Machine
Product Description
Rasper is company's high-tech products and patented technology products, high-speed breaking raw materials, destroy the fiber structure, starch particles free.High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
Main Features of Rasper
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.

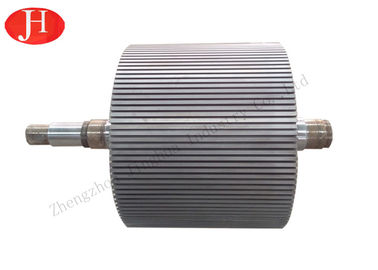

2. Unique drum groove and layering instrument design benefits saw blade changing.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.
Main Technical Parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width(mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
Company Information
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 10 invention patents.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.
Our Factory
Our Office Our Workshop Our Workshop
